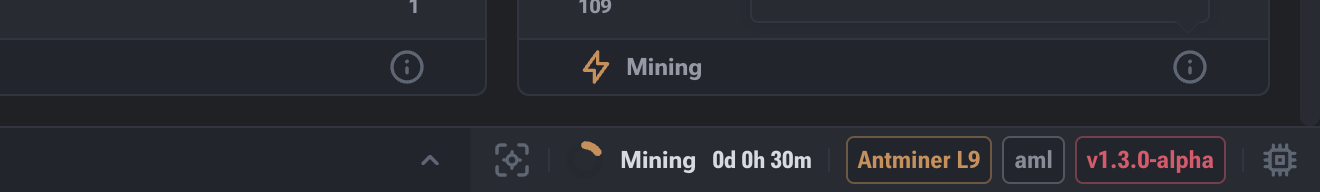

Status Bar
Located at the bottom of the interface and displays key technical information about the device’s current state in real time.
##№ Purpose
The Status Bar is an operational control panel that allows you to quickly assess the miner’s condition without navigating to other interface sections.
It is used for:
- quick monitoring of the device’s current state;
- checking firmware version and miner model;
- initial problem diagnostics (unexpected reboots, mining stops, freezes).
##№ Displayed Parameters
Operating Status Shows the current state of the device, for example:
Mining, Stopped, Initialization, Autotuning, etc.
This makes it easy to see whether the device is actively mining or in a service mode.
--- Uptime Example: 50d 18h 19m
Displays how long the device has been running without a reboot.
This is an important indicator of system stability.
--- Device Model Example: Antminer S21+
Helps quickly identify the device when working with multiple miners or accessing it remotely.
--- Controller Platform Example: aml
Indicates the type of control platform (such as Amlogic, Xilinx, etc.).
Important for firmware compatibility and technical diagnostics.
--- Firmware Version Example: v1.2.7-alpha22
Allows you to determine whether a stable release or a test build (alpha / beta) is in use.
Practical Role
The status bar is the first point of reference when assessing device condition.
It is checked before reviewing logs, charts, or extended statistics.
Boards
This section is intended for monitoring the status and operating parameters of the miner’s hash boards. Each board contains a set of ASIC chips and functions as an independent computing module.
Logs
This section displays system and mining events in real time and is used for diagnostics and performance analysis.
